See Mercury and Venus orbits during the day

Your hands and arms help you see the orbits of Mercury and Venus and the shape of solar system

Question: If you could see the orbit of Venus would it fill the whole sky?

The answer might surprise you!

You can use your hands and arms to see the size of the orbits of the solar system’s inner planets: Mercury and Venus.

Imagine (as pictured below) if the orbit of Mercury were visible as a red oval and the orbit of Venus were visible in green.

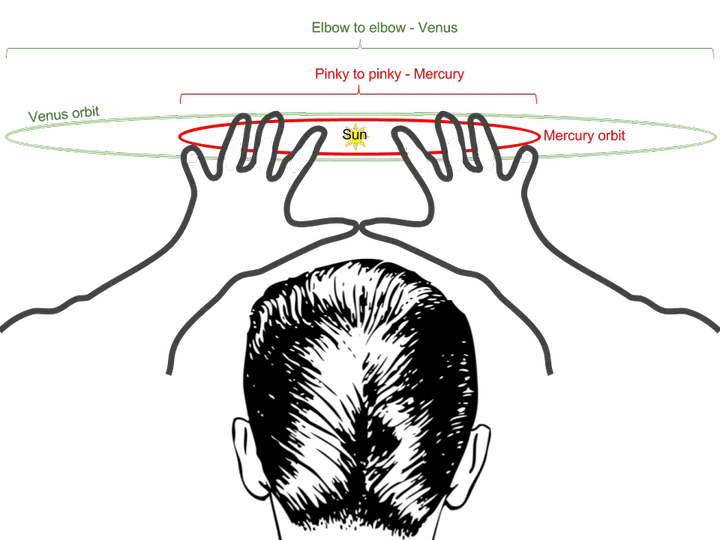

Use your hands and elbows to see Mercury and Venus orbits any time of day or night. The orbits of Mercury and Venus can be seen.
Two hand spans show Mercury’s orbit, elbows show Venus’s orbit.

Physical Astronomy – see Mercury and Venus orbits

Caution! Do not look directly at the Sun without proper solar safety glasses on.

Turn toward the Sun, hold your arms out straight, hands up in the air with fingers spread wide and thumbs touching. Your pinky fingers now span the width of the orbit of Mercury and your elbows span the width of the orbit of Venus.

Both of the entire orbits of Mercury and Venus orbits would be visible in the sky all at once – if they could be made visible during the day.

See The Orbit of Mercury – Aldebaran to Pollux

Mercury's orbit fits in the daytime sky - spans 3.5 hours right ascension.

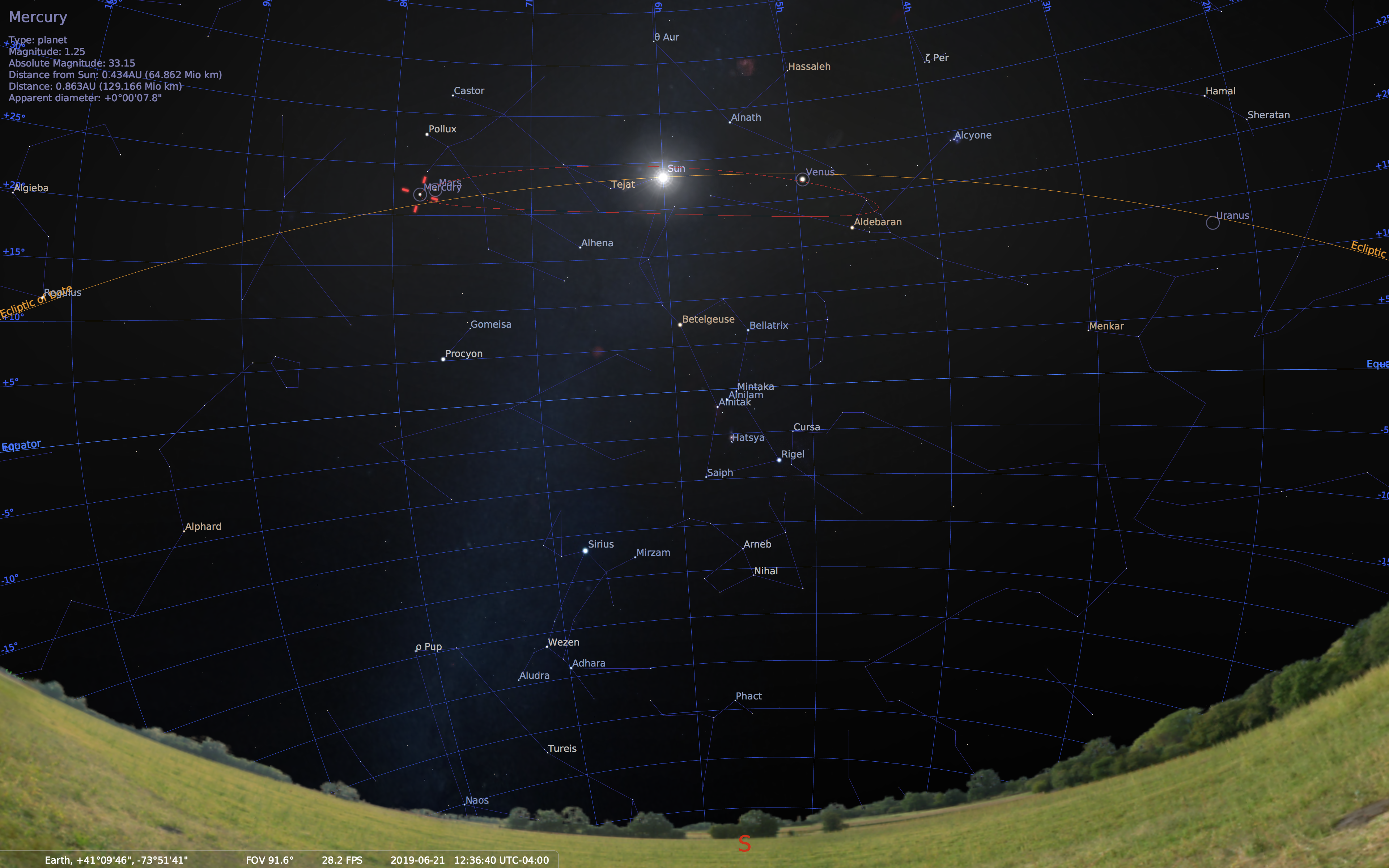

Mercury’s orbit seen against the background of springtime evening stars. Stellarium view.

At night, you can use stars to help visualize the size of the inner planet’s orbits.

To visualize that in the night sky (in springtime) Mercury’s orbit spans from Aldebaran to Pollux.

Astronomers use “hours” to measure east to west sky movement. Mercury’s orbit spans 3.5 hours.

See The Orbit of Venus – Regulus to the Pleiades

Venus's orbit fits in the daytime sky - spans 6.5 hours right ascension.

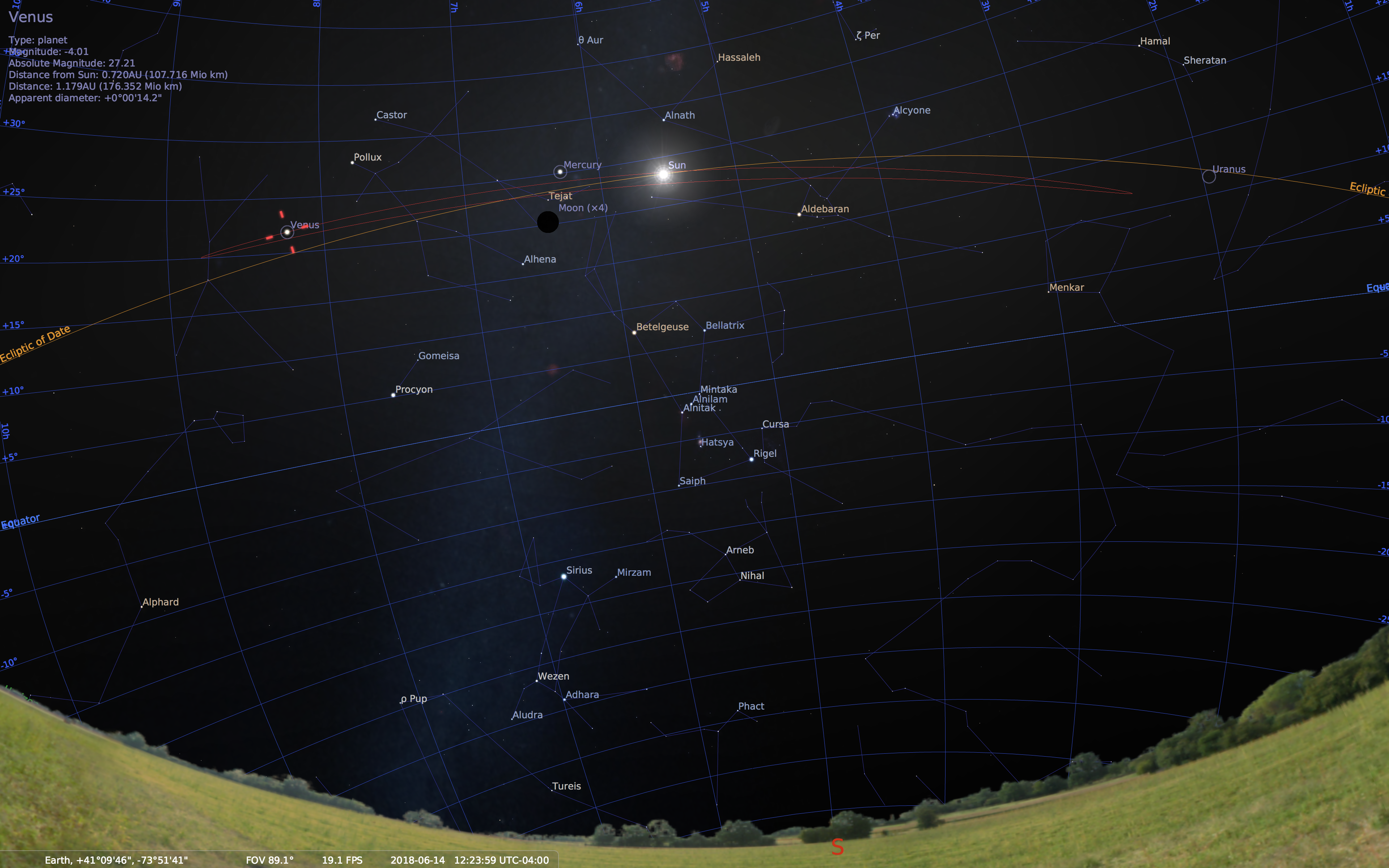

Venus’s orbit seen against the background of springtime evening stars. Stellarium view.

Venus’s orbit spans 7 hours of the sky.

To visualize that in the night sky (in springtime) Venus’s orbit spans from Regulus to the Pleiades (the seven sisters).

Summary

We answered the question: If you could see the orbit of Venus would it fill the whole sky?  The answer is no, it would fill only part of the sky. We learned a Physical Astronomy technique for how to see the orbits of the two inner planets Mercury and Venus.
